Advanced LT for TOYOTA

Enhance your vehicle diagnostics with the Advanced LT plugin for Torque Pro, designed specifically for TOYOTA enthusiasts. This plugin expands the capabilities of Torque Pro by integrating advanced sensor data for real-time monitoring of your TOYOTA's engine and automatic transmission.

The Advanced LT plugin enriches Torque Pro’s PID/Sensor list with tailored parameters for TOYOTA vehicles. You can test the plugin with a selection of sensors before deciding to purchase, although it does not include calculated sensors such as Injector Duty Cycle.

Important Note: While the plugin is primarily tested on the following TOYOTA models and engines, it may also support other models:

• Avensis 1.8/2.0 (T270)
• Corolla 1.8/2.0 (E140/E150)
• Corolla 1.6/1.8 (E160/E170)
• Camry 2.4/2.5 (XV40)
• Camry 2.0/2.5 (XV50)
• Highlander 2.7 (XU40)
• Highlander 2.0/2.7 (XU50)
• RAV4 2.0/2.5 (XA30)
• RAV4 2.0/2.5 (XA40)
• Verso 1.6/1.8 (R20)
• Yaris 1.4/1.6 (XP90)
• Yaris 1.3/1.5 (XP130)

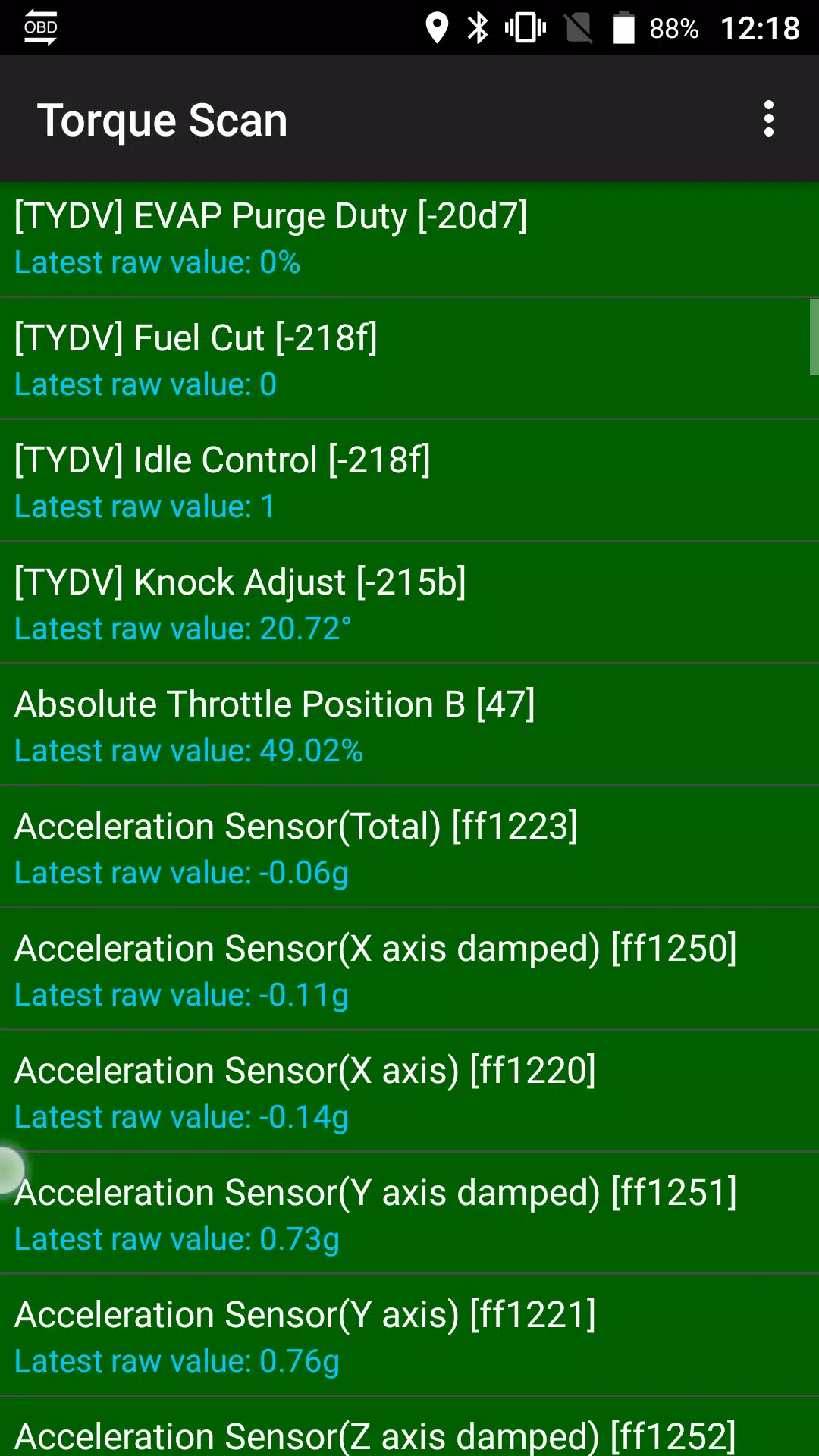

Additionally, the plugin features an ECU Scanner that is instrumental in identifying sensors on TOYOTA engines not yet supported by the plugin. Simply record at least 1000 samples and forward the logs to the developer for further enhancements.

To utilize Advanced LT, ensure you have the latest version of Torque Pro installed, as the plugin is not a standalone application and requires Torque Pro to function.

Plugin Installation Steps:

1. After purchasing Advanced LT on Google Play, verify its presence in your Android device's installed applications.
2. Open Torque Pro and tap on the "Advanced LT" icon.
3. Choose the correct engine type and return to Torque Pro's main screen.
4. Navigate to Torque Pro's "Settings".
5. Confirm the plugin's integration by checking "Settings" > "Plugins" > "Installed Plugins".

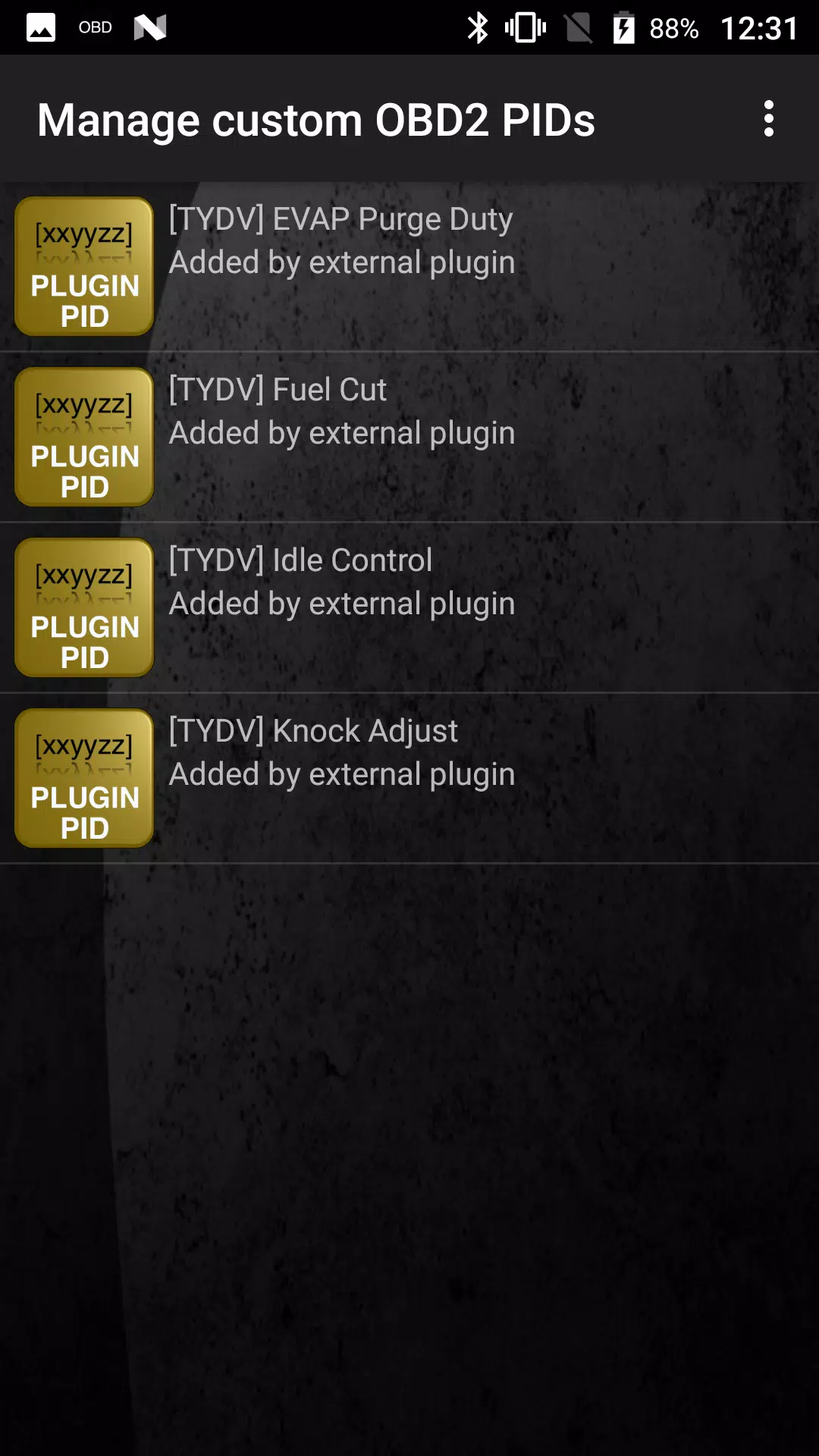

6. Scroll to "Manage extra PIDs/Sensors".
7. If no entries are displayed, it's normal unless you've previously added custom PIDs.
8. From the menu, select "Add predefined set".

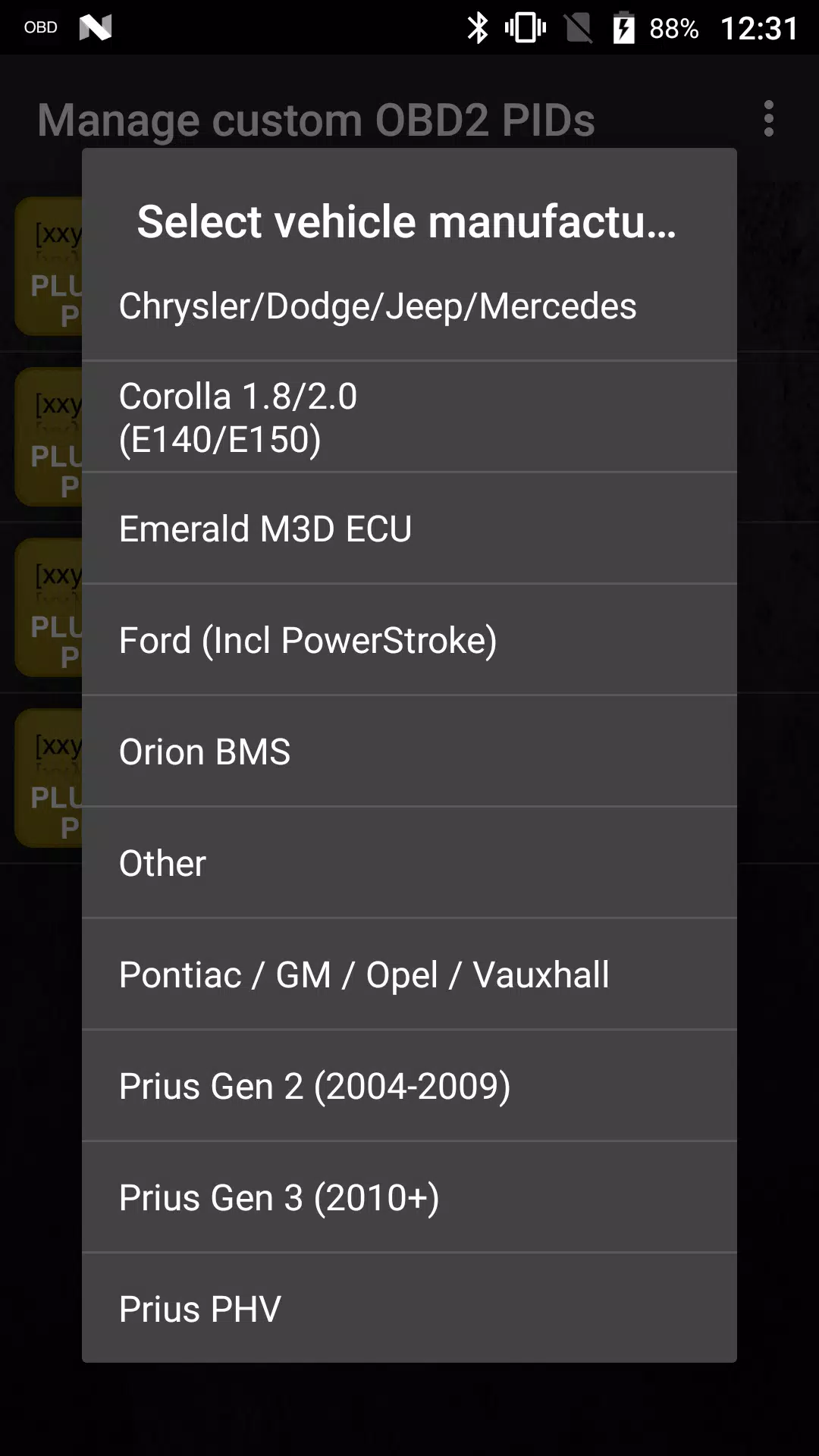

9. Be sure to select the correct TOYOTA engine type from the list.
10. After selection, you'll see new entries added to the Extra PIDs/Sensors list.

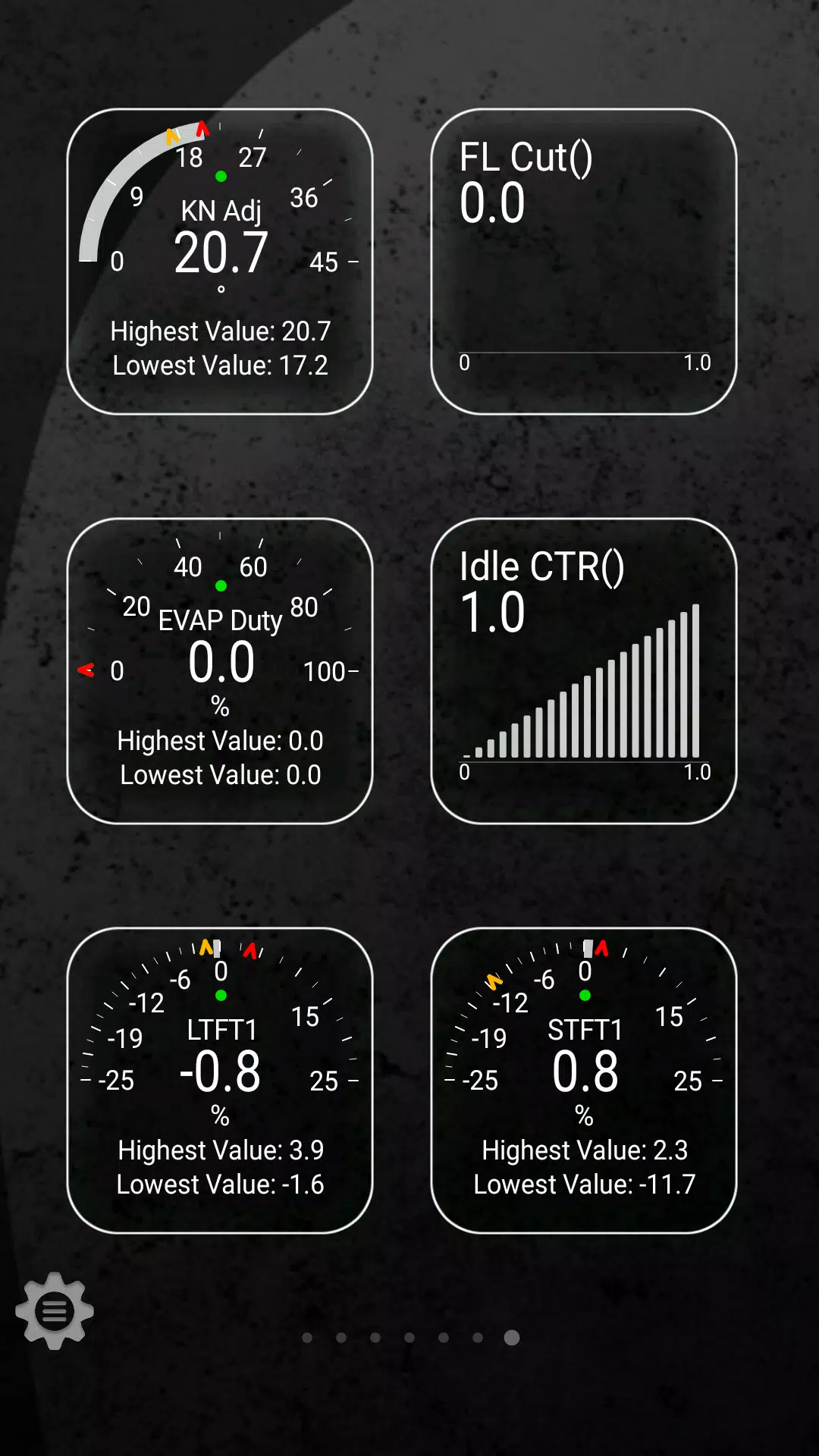

Adding Displays:

1. Once additional sensors are added, go to Realtime Information/Dashboard in Torque Pro.
2. Press the menu key and select "Add Display".
3. Choose your preferred display type (Dial, Bar, Graph, Digital Display, etc.).
4. Select the sensor starting with "[TYDV]" provided by Advanced LT, located just after the time sensors at the top of the list.

Future updates will introduce more features and parameters. Your feedback and suggestions are highly valued, so please feel free to share your insights for ongoing improvements.
